۵۲۰ تن قدرت چسبندگی ماشین تزریق جعبه پلاستیکی برای سبد میوه

اطلاعات پایه
محل منبع: چین
نام تجاری: OUCO
گواهی: CE, ISO9001:2008, SGS
شماره مدل: OC-520T
مقدار حداقل تعداد سفارش: 1
قیمت: Negotiable
جزئیات بسته بندی: برهنه
زمان تحویل: 2 ماه
شرایط پرداخت: T/T، Western Union، L/C
قابلیت ارائه: 500 مجموعه در سال
اطلاعات تکمیلی
نام محصول: 520 تن نیروی گیره دستگاه قالب گیری تزریق جعبه پلاستیکی برای سبد میوه نوع: اتوماسیون
عملکرد: تولید قطعات پلاستیکی موتور: صرفه جویی در انرژی سروو
رنگ: پشتیبانی از سفارشی سازی عملکرد پایدار: زمان چرخه کوتاه
راه بستن: هیدرولیک بسته حمل و نقل: FCL
برجسته:

ماشین تزریق جعبه پلاستیکی,دستگاه تزریق قالب برای سبد میوه,۵۲۰ تن ماشین های تزریق پلاستیک

,

injection molding machine for fruit basket

,

520 Tons plastic injection moulding machines


توضیحات محصول

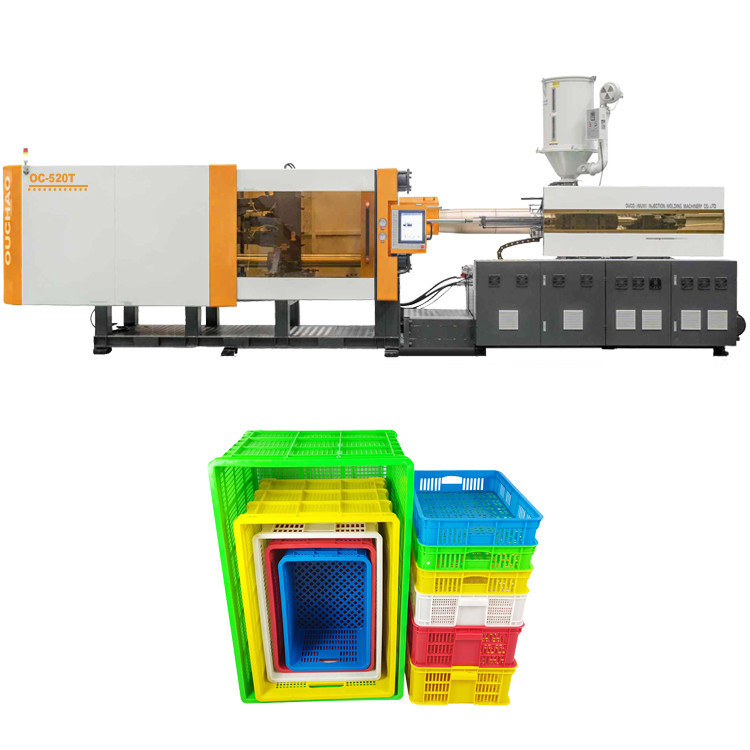

520 tons clamping force Plastic Crate Injection Molding Machine For Fruit Basket



About Us
Our company was founded in 2021, We are committed to developing and manufacturing high-quality, high-performance injection molding equipment for automotive parts, medical equipment, large pipe fittings, trash cans, trays and fruit baskets. Our equipment will bring more possibilities to the injection molding industry.



Our advantages and services
We have R&D team,own machine assembly plant,experienced machine assembly workers,machine inspection team,international sales team and after-service department. we supply machine from 50 tons to 2200 tons,and each specification can be equipped with 2 or 3 different injection structures for different customer choose.
We are not only win by machine price, but also win by machine quality and service. We ensure that you will get better benefits and save more costs if you choose us.
When you are worried about how to choose a suitable and cost-effective machine,You can contact us at any time, we will provide detailed pre-sales service to help you choose a more suitable machine to meet your production and save more costs for you.
There is also no need to worry about the use of the machine. We will provide full help and guidance on the installation and use of the machine.
We also have excellent after-sales service,if you have any question about the use, repair, maintenance, and parts supply of the machine you can contact with us anytime,we will provide you with solutions to help you use the machine better.



Product Series Description:
Our injection molding machine series uses the latest technology and high-quality materials, designed for efficient, precise and versatile production to meet the needs of different customers. Whether it is producing thin-walled products or thick-walled products, our injection molding machines can provide excellent performance and reliability.
OUCO plastic crate injection molding machine series has great advantages in the production of fruit baskets and other series of products, and is very suitable for the production of deep-cavity plastic products. The plastic crate injection molding machine series has three injection molding machine models: 420T, 520Tand 580T. These three models have great advantages over other brands of injection molding machines on the market in terms of mold clamping force and mold opening stroke.
The products that our injection molding machines can produce are not limited to fruit baskets, but are also suitable for the production of plastic outdoor trash cans, paint buckets, transfer boxes, storage boxes, lockers, lunch boxes, chairs, stools and other common plastic products in our daily life. This will provide you with strong flexibility in production.



Parameters

MODEL OCH-520T
Screw Model A B
Screw diameter(mm) 95 100
Screw L/D ratio 19 18
Theoretical injection volume (cm3) 2941 3259
Shot weight (PS) g 2481 3148
Injection rate (g/s) 856 948
Injection pressure(M Pa) 113 102
Injection stroke(mm) 415
Screw Speed(r/min) 0-200
Sys.Pressure(M pa) 16
Pump Motor(KW) 75
Clamping force (KN) 5200
Heater power(W) 35
Number of temp.control zones 5+1
Opening stroke (mm) 900
Ejector stroke(mm) 190
Ejector force forward(KN) 80
Space between tie bar (mm*mm) 820*780
Max. mold thickness (mm) 760
Min. mold thickness(mm) 300



Applicable scene:

The fruit basket injection molding machine is suitable for the production of various fruit baskets and is widely used in fruit packaging, supermarkets, farmers' markets, orchards and other fields, providing customers with efficient and high-quality fruit basket production solutions.



Detail Pictures

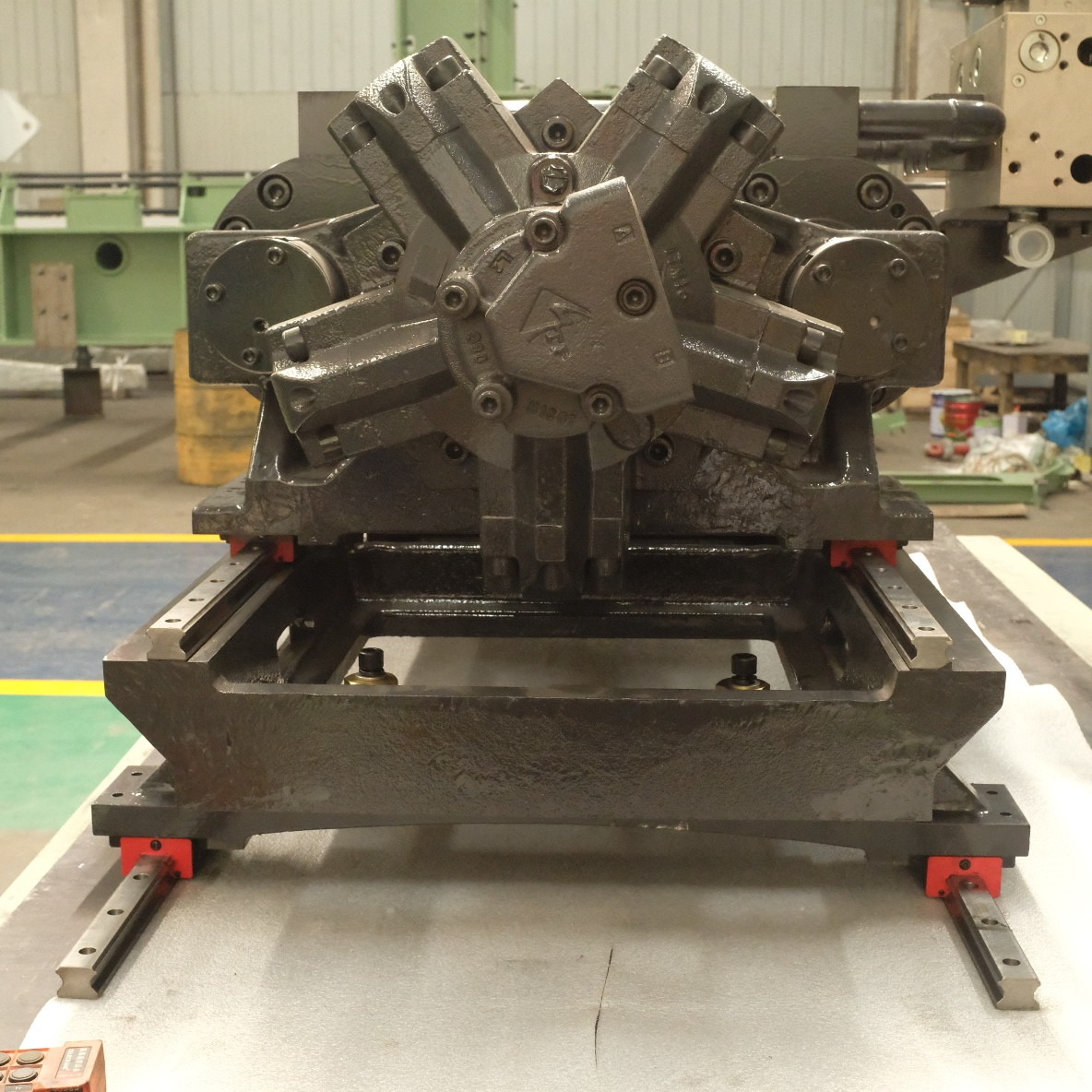

۵۲۰ تن قدرت چسبندگی ماشین تزریق جعبه پلاستیکی برای سبد میوه 0۵۲۰ تن قدرت چسبندگی ماشین تزریق جعبه پلاستیکی برای سبد میوه 1

۵۲۰ تن قدرت چسبندگی ماشین تزریق جعبه پلاستیکی برای سبد میوه 2۵۲۰ تن قدرت چسبندگی ماشین تزریق جعبه پلاستیکی برای سبد میوه 3



Company Profile
۵۲۰ تن قدرت چسبندگی ماشین تزریق جعبه پلاستیکی برای سبد میوه 4
۵۲۰ تن قدرت چسبندگی ماشین تزریق جعبه پلاستیکی برای سبد میوه 5
۵۲۰ تن قدرت چسبندگی ماشین تزریق جعبه پلاستیکی برای سبد میوه 6
